Sizes Nominal pressure/Maximum pressure
10 to 180 5800/6500 psi (400/450 bar)
250 5100/5800 psi (350/400 bar)
Open and closed circuits

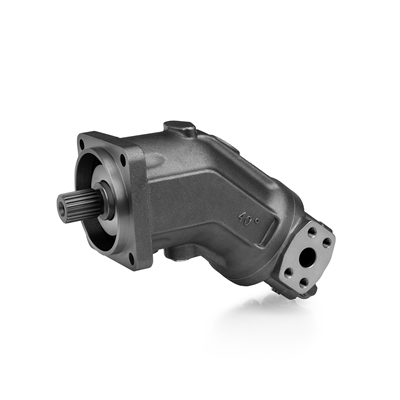

Schaeter AA2FM axial piston motor is the SAE verison of A2FM series motor. It is widely used in mobile and industrial applications.
-The output speed is dependent on the flow of the pump and
the displacement of the motor.
-The output torque increases with the pressure differential
between the high-pressure and the low-pressure side.
- Finely graduated sizes permit far-reaching adaptation to the
drive case
-One-piece tapered piston with piston rings for sealing
-Bent-axis design
