open circuits
Series 1
Sizes 40 to 260
Nominal pressure 35MPa
Maxmum pressure 40MPa

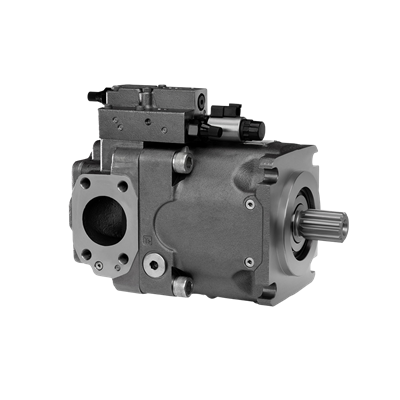

— Variable axial piston pump of swashplate design for hydrostatic drives in open circuit hydraulic system.
— Designed primarily for use in mobile applications.
— The pump operates under self-priming conditions,with tank pressurization,or with an optional built-in
charge pump (impeller).
— A comprehensive range of control options is available matching any application requirement.
— Power control option is externally adjustable,even when the pump is running.
— The through drive is suitable for adding gear pumps and axial piston pumps up to the same,i.e.100%
through drive.
— The output flow is proportional to the drive speed and infinitely variable between qvmax and qvmin=0
Datasheet:
Brochure:
