Size: 10,20,30
Component series: 5X
Maximum operating pressure: 35 MPa
Maximum flow: 650 L/min

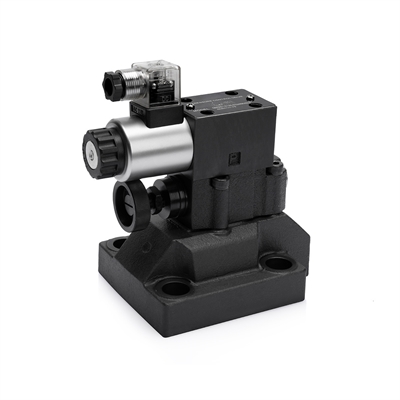

Schaeter DBW valve is a type of pilot-operated pressure relief valve that is used for limiting and solenoid-actuated unloading of a system pressure
— Used for base plate installation
— 4 pressure regulating elements, optional:Rotary knob/Bushing with hexagon and protective cap/Lockable knob with scale/A knob with a scale
— 5 pressure ranges
— Unload with pre-installed directional valve electromagnetic operation
— High power electromagnet
— Optional with switching time delay (DBW only)
— Corrosion resistant design
